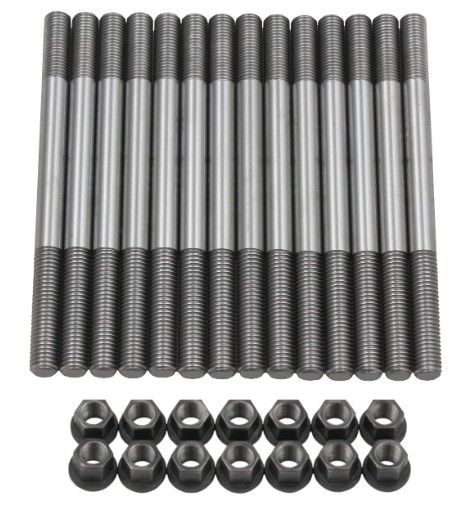

BMW M52 / M54 VANOS High-Performance M12 Cylinder Head Studs Kit

BMW M52 / M54 VANOS High-Performance M12 Cylinder Head Studs Kit

FTWL Turbo-Spec Studs – Built for Extreme Boost and Engine Longevity

Take your turbocharged BMW build to the next level with the FTWL Motorsport M12 Cylinder Head Stud Kit – designed specifically for M52 and M54 engines. This heavy-duty upgrade is engineered to solve the notorious issue of stripped M10 threads in aluminum blocks while delivering rock-solid head sealing under extreme boost pressures.

Key Features:

✅ 100% CNC Machined – Made in the EU
Manufactured from high-grade, motorsport-specific steel developed for maximum durability and precision.

✅ M12x1.5 Stud Conversion – Bigger, Stronger, Better
This kit uses oversized M12x1.5 studs, requiring block rethreading and head gasket + washer drilling to 12.5 mm. The result? A brand-new, untorqued thread in the block with greatly improved load-bearing capacity.

✅ Fixes Stripped M10 Threads – Permanently
If your original M10 threads are damaged or unreliable, this is the solution. Reinforce your engine block and extend its usable life without the need for an expensive replacement.

✅ Built for High-Boost Turbo Applications – 700–800+ HP Ready
Proven on forged turbo BMW engines consistently generating 700–800+ horsepower. Track-tested, drift-proven, and street-reliable.

✅ Optimal Load Transfer
The tighter fit of M12 studs allows for more effective load distribution between the stud and block, increasing clamping force and overall head gasket reliability.

✅ A Must-Have for Serious Builds
This isn’t just a fix — it’s a vital upgrade for any turbocharged M52 or M54 engine, regardless of the current condition of the block threads.

⚙️ Installation Notes:

• Requires block rethreading to M12x1.5

• Head gasket and washers must be drilled to 12.5 mm

• Use Loctite 3020 for head gasket assembly (strongly recommended)
