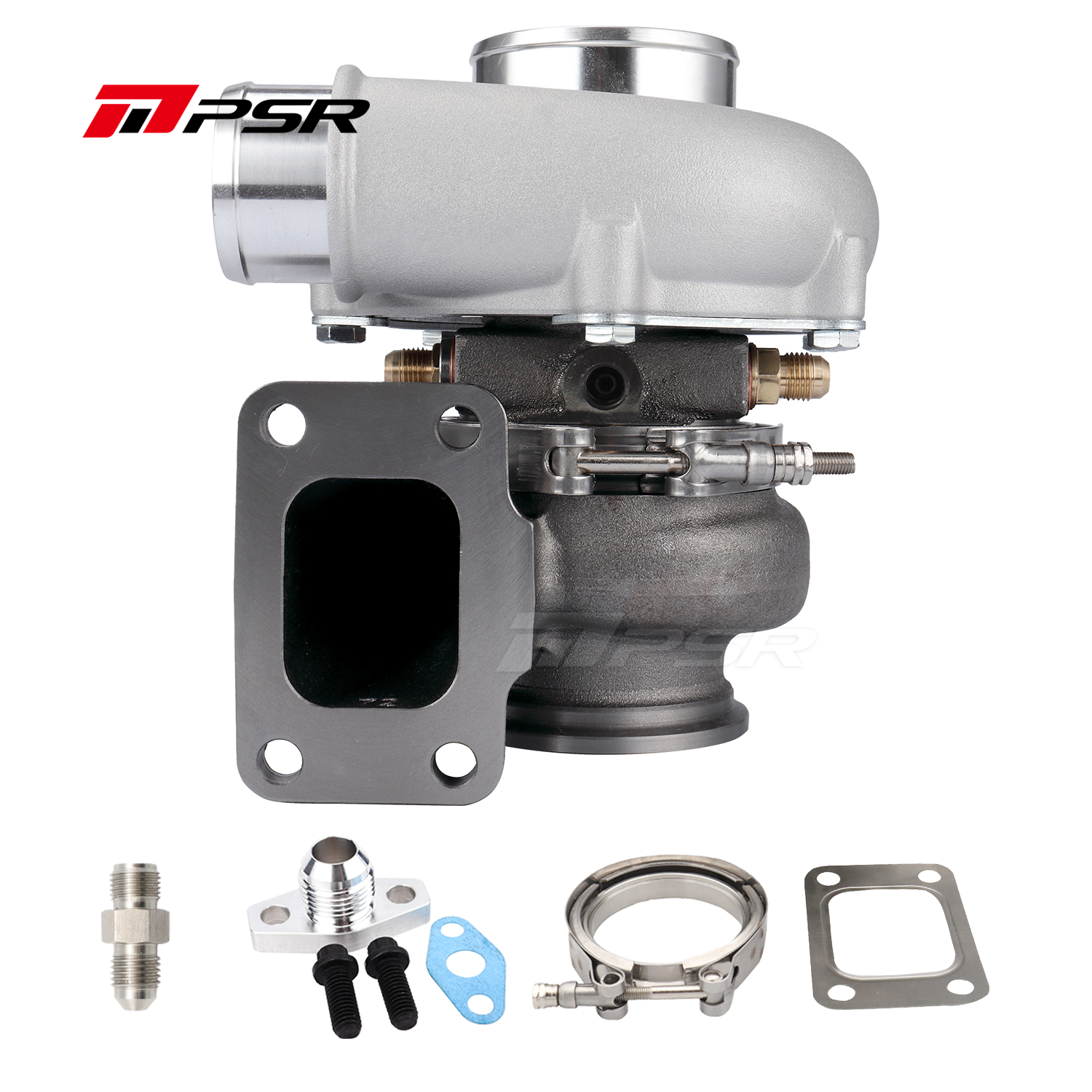

PSR 4849G Forward Rotation - Dual Ball Bearing Turbocharger HP Rating 550

PSR 4849G Dual Ball Bearing Turbocharger

Dual Ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

9 Blade G-Aero Inconel 713c Turbine Wheel

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

Internally Wastegated, Billet Actuator(Working pressure 12 psi)

Compressor Wheel: 48*60mm

Turbine Wheel: 54*49mm

Compressor Inlet: 3″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: 2.5″ V-Band, T25 or T3

Turbine Outlet: 3″ V-Band

Water Ports: -6AN

Oil Feed: -4AN to the Oil Restrictor

Oil Drain: Std T3 Oil Drain Flange
