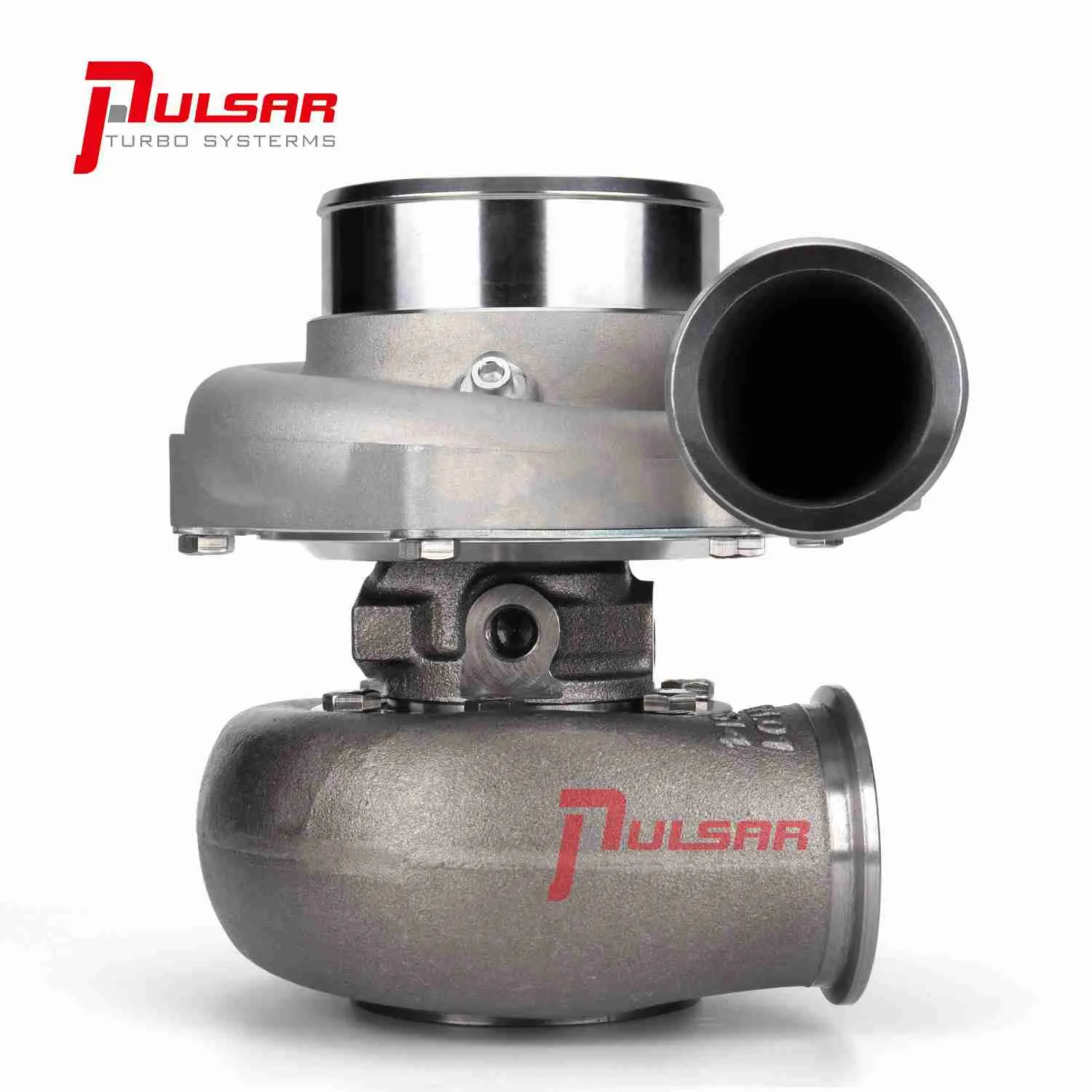

PSR3582 Gen2 Dual Ball Bearing Turbocharger
Dual Ceramic Ball Bearing System
10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c Gen2 9 Blade Turbine Wheel
Gen2 Cover Integrated with the Speed Sensor Port
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet etc. turbine housings in option
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L
Compressor Wheel: 66*82mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4.0 Hose
Compressor Outlet: 2.5 Hose
Turbine Inlet: T3, T4, or 2.5″ V-Band
Turbine Outlet: 3″ V-Band (3.55″OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
